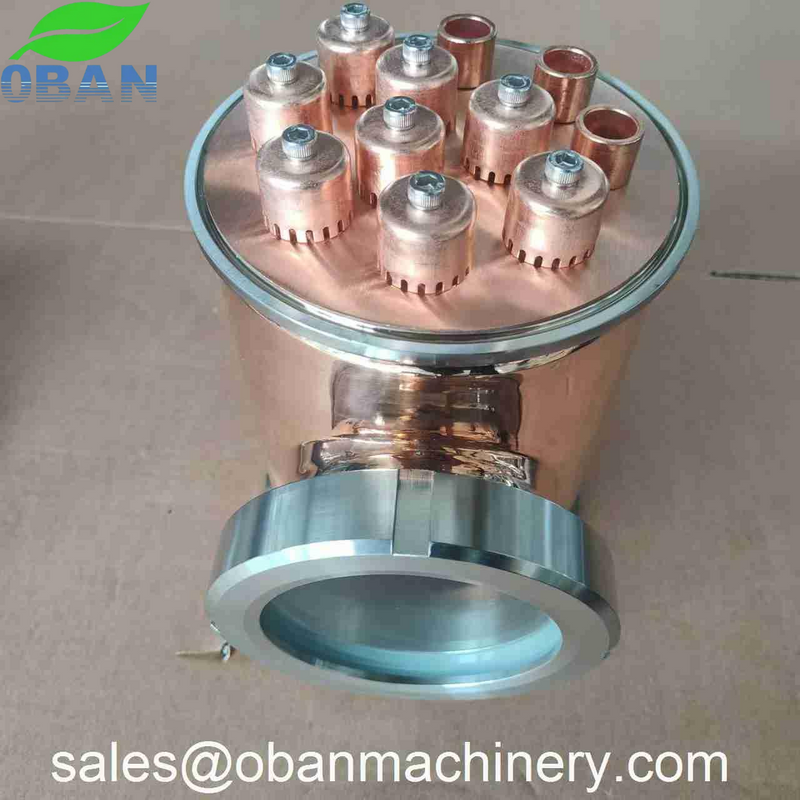

6 inch Copper / Stainless Steel Reflux Column Section w/ Bubble Plate

Descriptions：

Each section includes a sight glass tee, copper bubble plate, clamp and gasket

Material: SUS 304 / T2 Lead Free Copper

Height: 150mm

1. Product Overview

The 6 Inch Reflux Column Section with Bubble Plate is a section of a distillation column, typically made of copper or stainless steel, and equipped with bubble plates. This design is suitable for alcohol distillation, rectification, and other processes requiring efficient separation. The reflux column section uses bubble plates to achieve efficient gas-liquid phase contact, thereby improving separation efficiency and product purity.

2. Key Features

• Material Options:

  • Copper: Offers excellent thermal conductivity and antibacterial properties, ideal for traditional distilled spirits like whiskey and rum.

  • Stainless Steel: Corrosion-resistant and easy to clean, suitable for industries with high sanitary standards, such as food and pharmaceuticals.

• Bubble Plate Design: Enhances gas-liquid phase contact for improved separation efficiency.

• Modular Design: Can be combined with other column sections to flexibly adapt to different distillation needs.

• Efficient Reflux: Optimizes reflux ratio to improve product purity and yield.

• Wide Applicability: Suitable for alcohol distillation, essential oil extraction, chemical separation, and more.

3. Applications

• Distilling Industry: Used in the production of distilled spirits such as whiskey, vodka, and rum.

• Essential Oil Extraction: Efficient extraction and separation of plant essential oils.

• Chemical Industry: Suitable for separation and purification processes in fine chemical production.

• Laboratory Research: Used for small-scale distillation experiments and process development.

4. Selection Guide

• Material Choice:

  • Copper is ideal for traditional spirit distillation, while stainless steel is suitable for industries with high sanitary requirements.

• Size Compatibility: Ensure the column section size (6 inches) matches existing equipment.

• Number of Bubble Plates: Choose the appropriate number of plates based on separation requirements.

• Additional Features: Optional accessories like thermometer ports or sight glasses for monitoring and operation.

5. Recommended Brands

• Copper Moonshine Still: Specializes in copper distillation equipment, ideal for traditional distilling.

• StillDragon: Offers high-quality stainless steel distillation equipment for various industries.

• Distillery Equipment: Provides modular-designed distillation column sections with high flexibility.

• Domestic Brands: Such as Wenzhou Yinke and Shanghai Guanhuan, offering cost-effective solutions for the domestic market.

6. Maintenance and Care

• Regular Cleaning: Clean promptly after use to prevent residue from clogging the bubble plates.

• Check Seals: Ensure all connections are properly sealed to prevent leaks.

• Avoid Mechanical Damage: Handle with care to prevent deformation or damage from impacts.
