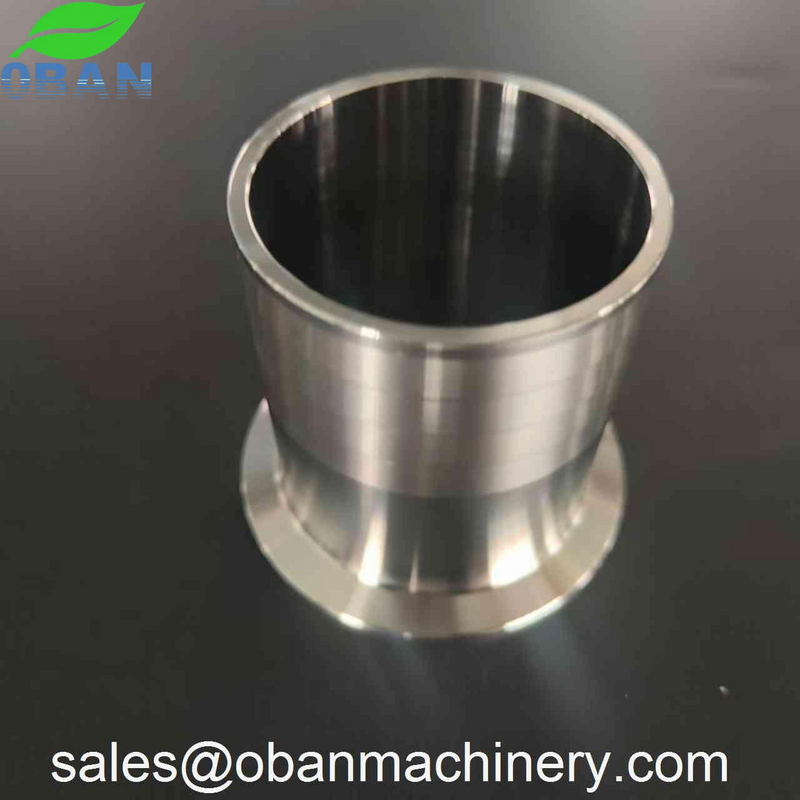

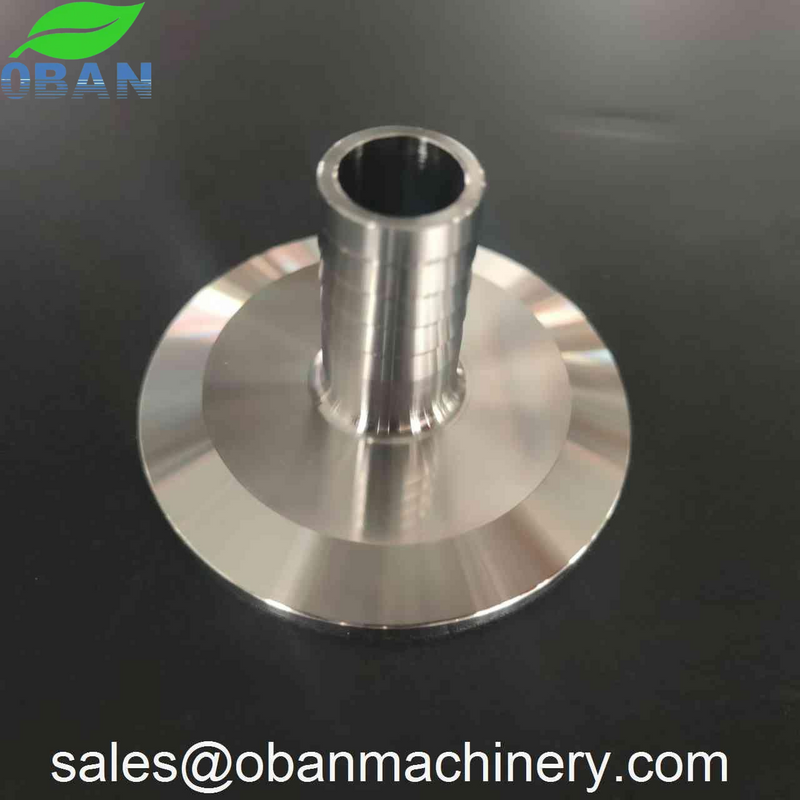

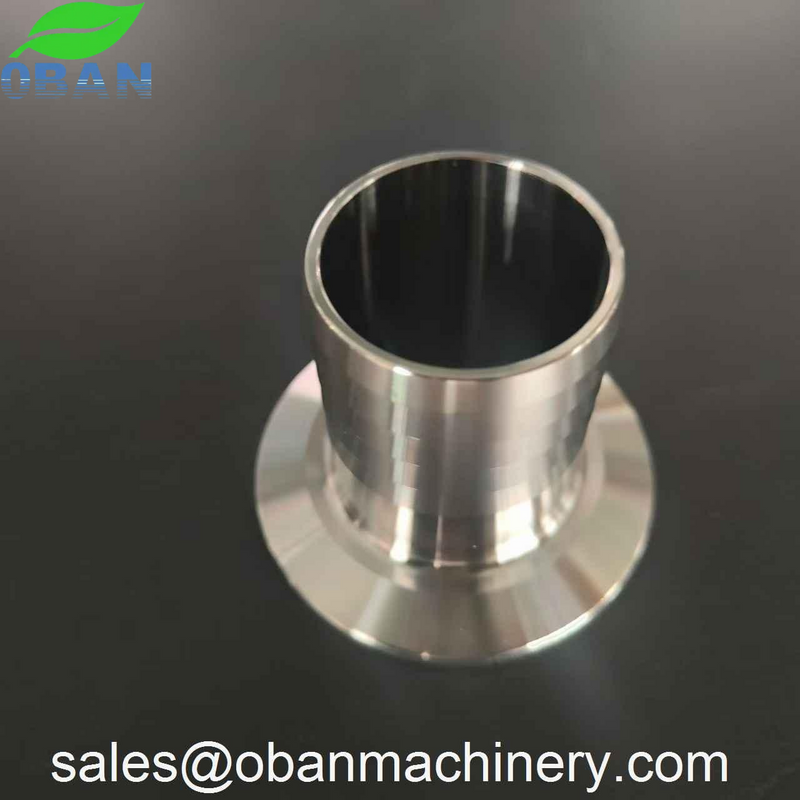

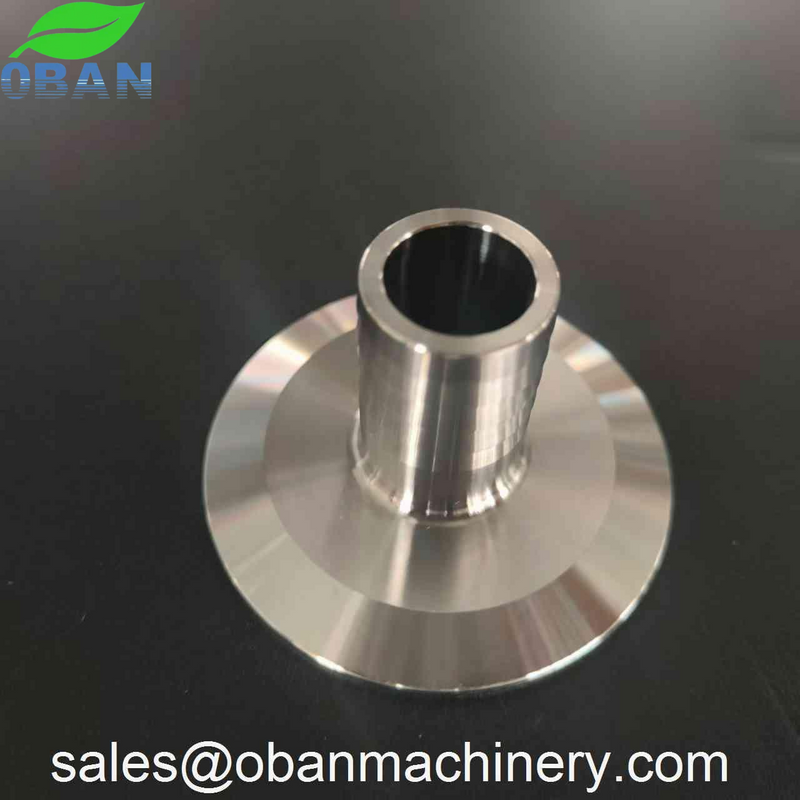

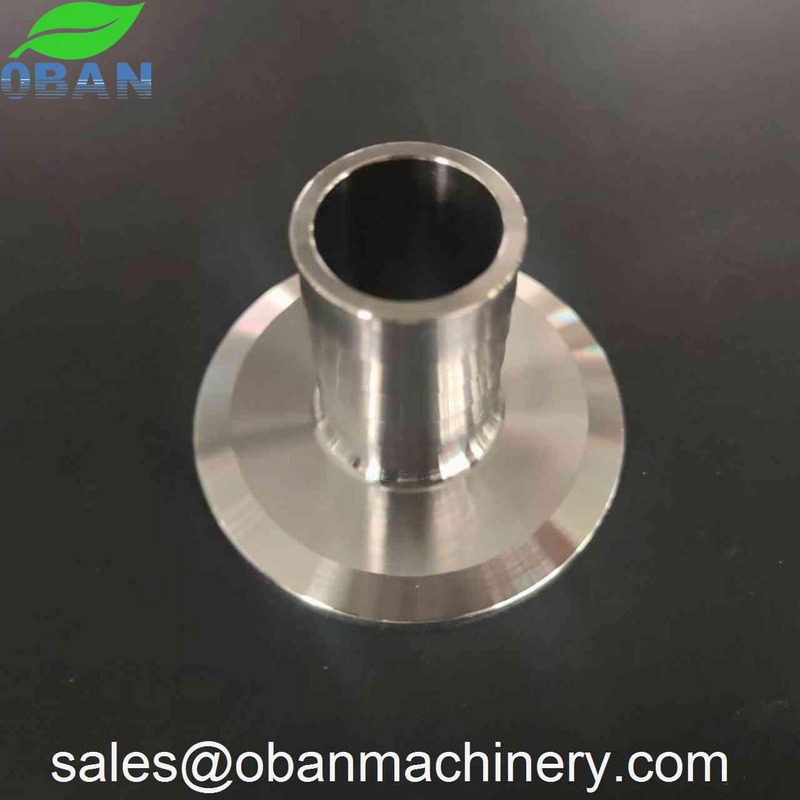

Stainless Steel Tri Clamp Hose Barb Fitting

$6.80

If you need more detailed drawings or other assistance, please contact sales@obanmachinery.com.

Stainless Steel Tri Clamp Hose Barb Fitting is a sanitary piping connector widely used in industries such as food & beverage, pharmaceuticals, and chemicals. It combines the Tri-Clamp (quick-install) design with a Hose Barb (for tubing connection), enabling seamless integration with hoses or other piping systems. Below is a detailed introduction:


1. Structure & Features

  • Material: Typically made of 304 or 316L stainless steel, offering corrosion resistance, high-temperature tolerance, and compliance with sanitary standards (e.g., FDA, 3-A).

  • Design:

    • Tri-Clamp End: Standard DIN/SMS clamp connection for quick attachment to sanitary pipes, tanks, or equipment, ensuring a tight seal.

    • Barb End: Features serrated ridges for secure insertion into silicone, PVC, or other flexible tubing, reinforced with a hose clamp to prevent slippage.

  • Surface Finish: Electropolished or mirror-finished (Ra ≤ 0.8μm) to minimize residue buildup and ease cleaning.


2. Common Types

  • Straight: Tri-Clamp on one end and barb on the other, for linear connections.

  • Elbow: 90° or 45° angles for complex piping layouts.

  • Tee: Allows flow diversion or merging.

  • Reducing: Connects hoses or pipes of different diameters.


3. Advantages

  • Sanitary: Dead-space-free design, suitable for CIP/SIP cleaning.

  • Quick Installation: No welding required; easy disassembly for maintenance.

  • Leak-proof: Paired with silicone/PTFE gaskets for reliable sealing.

  • Compatibility: Matches standard Tri-Clamp flanges (e.g., DN15-DN100).


4. Typical Applications

  • Food Industry: Transporting juices, dairy, beer, etc.

  • Pharmaceuticals: Sterile fluid transfer, bioreactor connections.

  • Chemical Processing: High-purity or corrosive fluid handling.


5. Selection Guide

  • Size: Confirm Tri-Clamp size (e.g., 1.5") and barb diameter (matching tubing ID).

  • Pressure/Temperature: Choose material based on operating conditions (316L for higher corrosion resistance).

  • Certifications: Ensure compliance with EHEDG, ASME BPE, etc.

Items in stock typically can be shipped within 7 work days, for returns please email us directly.

We provide one year warranty for all of the items sold in this site excluding gaskets&seals. Warranty period starts on the date of delivery and we will also cover postage for replacements.
