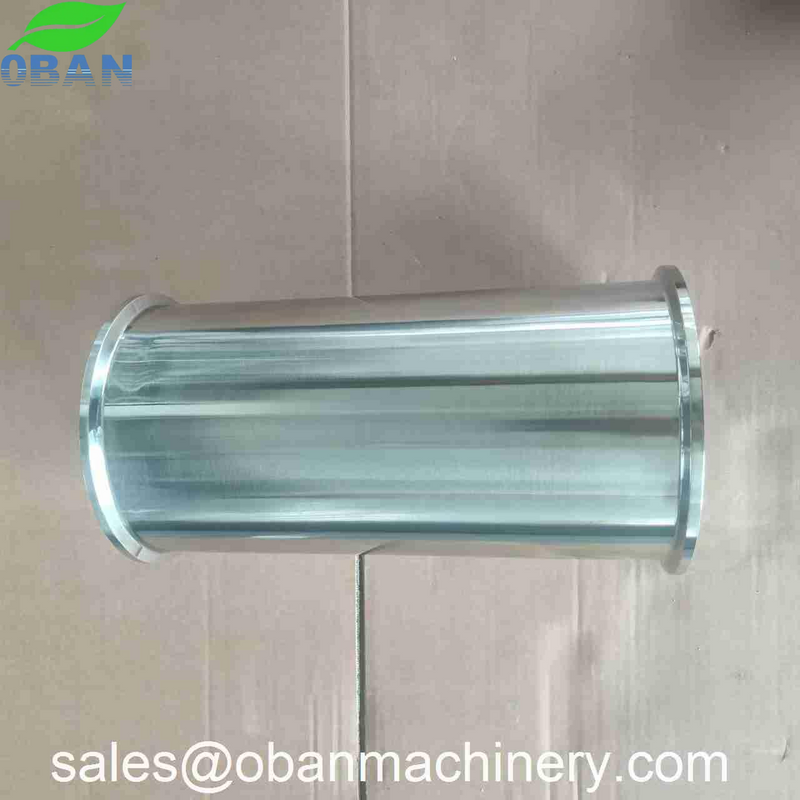

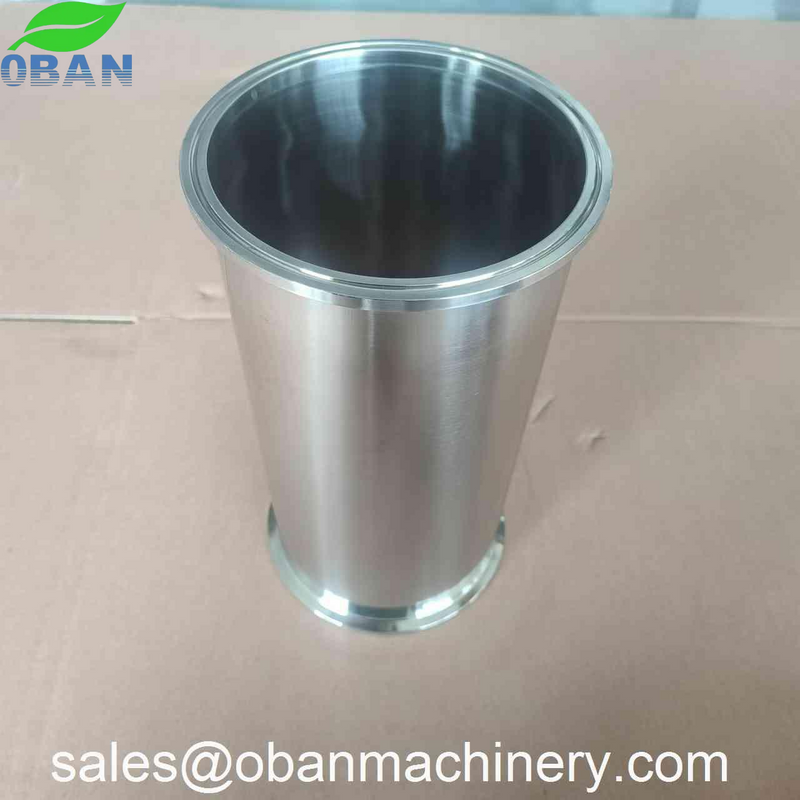

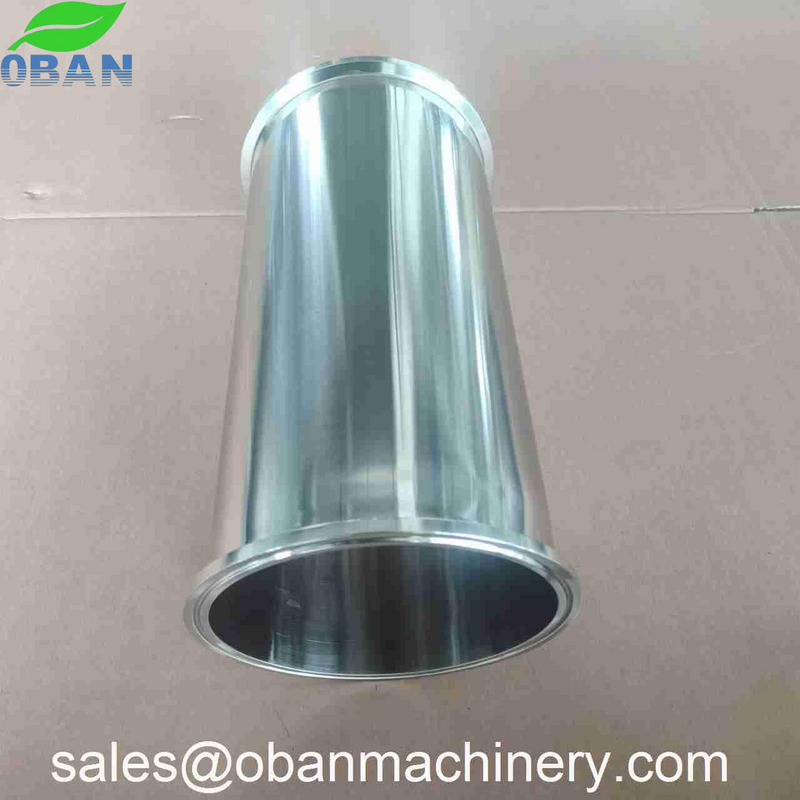

Stainless Steel Tri Clamp Spool(300mm Long)

Stainless Steel Tri Clamp Spool (300mm Long) – Product Introduction & Recommendation

1. Product Overview

The Stainless Steel Tri Clamp Spool (300mm Long) is a sanitary piping component designed for extending or adjusting pipeline layouts in hygienic fluid systems. Key features include:

• Material: Made of 304 or 316L stainless steel, offering corrosion resistance, high-temperature tolerance, and compliance with food/pharmaceutical standards (e.g., FDA, 3-A).

• Structure: Features Tri-Clamp (Triple Clamp) flanges on both ends with a 300mm straight pipe section in between, enabling quick installation/removal.

• Applications: Ideal for biopharma, food & beverage, and chemical industries, particularly for flexible piping arrangements or maintenance isolation.

2. Key Features

• Sanitary Design: Smooth internal/external polish (Ra ≤ 0.8μm) prevents microbial growth, suitable for CIP/SIP cleaning.

• Standardized Connections: Complies with ISO 2852/DIN 32676, compatible with Tri-Clamp fittings, valves, and pumps.

• Pressure & Temperature Resistance: Operating pressure ≤ 10 bar, temperature range -20°C to 150°C (varies based on gasket material).

• Customization Options: Available in different lengths, materials (304/316L), and finishes (Electropolished EP).

3. Common Applications

• Pipeline Extension: Connects two Tri-Clamp pipes when equipment spacing is wide.

• System Isolation: Acts as a removable section for maintenance or cleaning.

• Flow Monitoring: Can be equipped with sight glasses, temperature sensors, or other accessories.
