Variable AMPs Controller, Control Box For Distillers 208V-240V 1PH

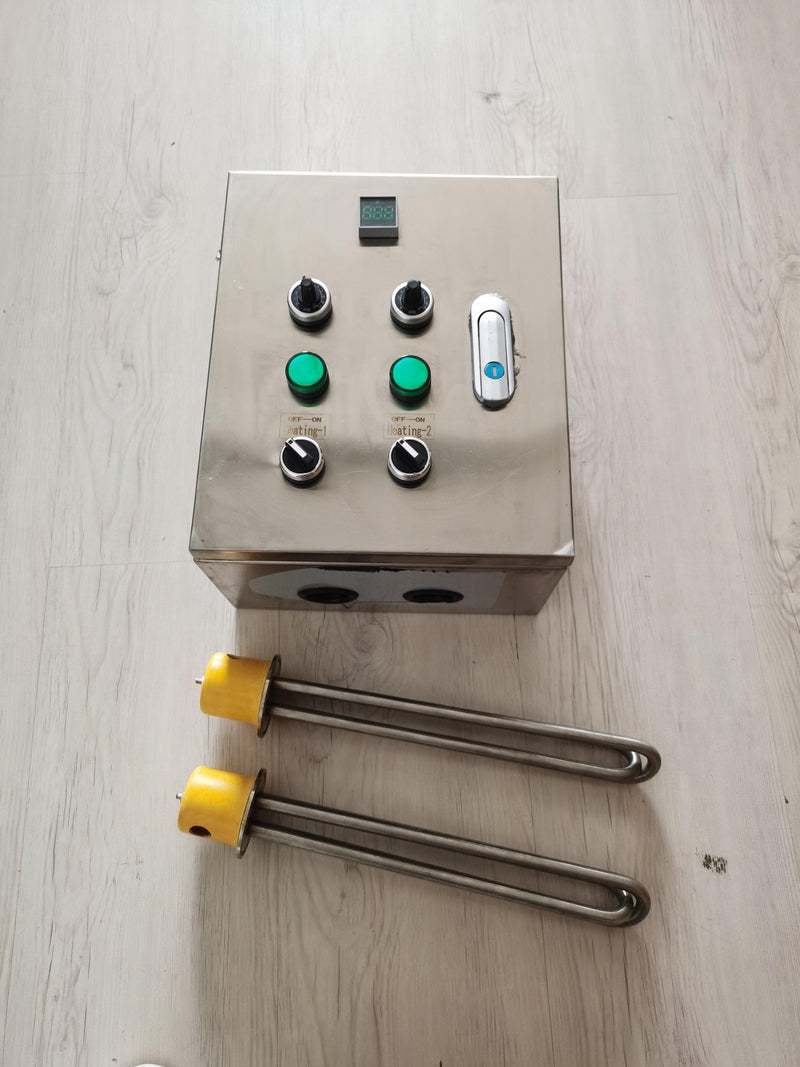

Variable AMPs controllers are perfect for distilling tanks, mash tuns, fermentors and various jacketed kettles where using elements as heat source. It can adjust the power of the elements from 0-100% continuously through a potentiometer, you can set power output to be 100% of the element capacity when heating starts and when the temperature reaches the distilling point you can set the power lower, say around 30% to keep the temperature at a proper range for distilling.

If you are looking for a custom controller in 3ph(415v 3ph, 380v 3ph, 220v 3ph etc)or with other functions such as PID please contact us, we can make controllers specifically to your needs.

For wiring instructions please click here

Main Specifications：
SSR size: 80A
The 80A SSR can handle up to 5.5kw 220v 1ph element so it's ok if your element is less than 5.5kw.

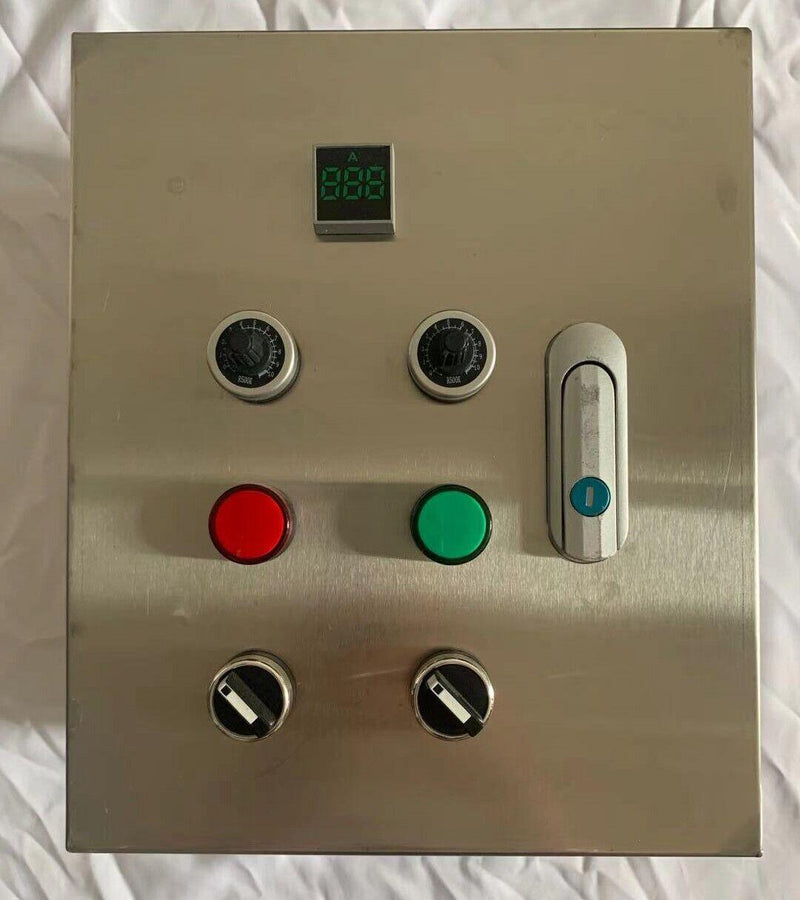

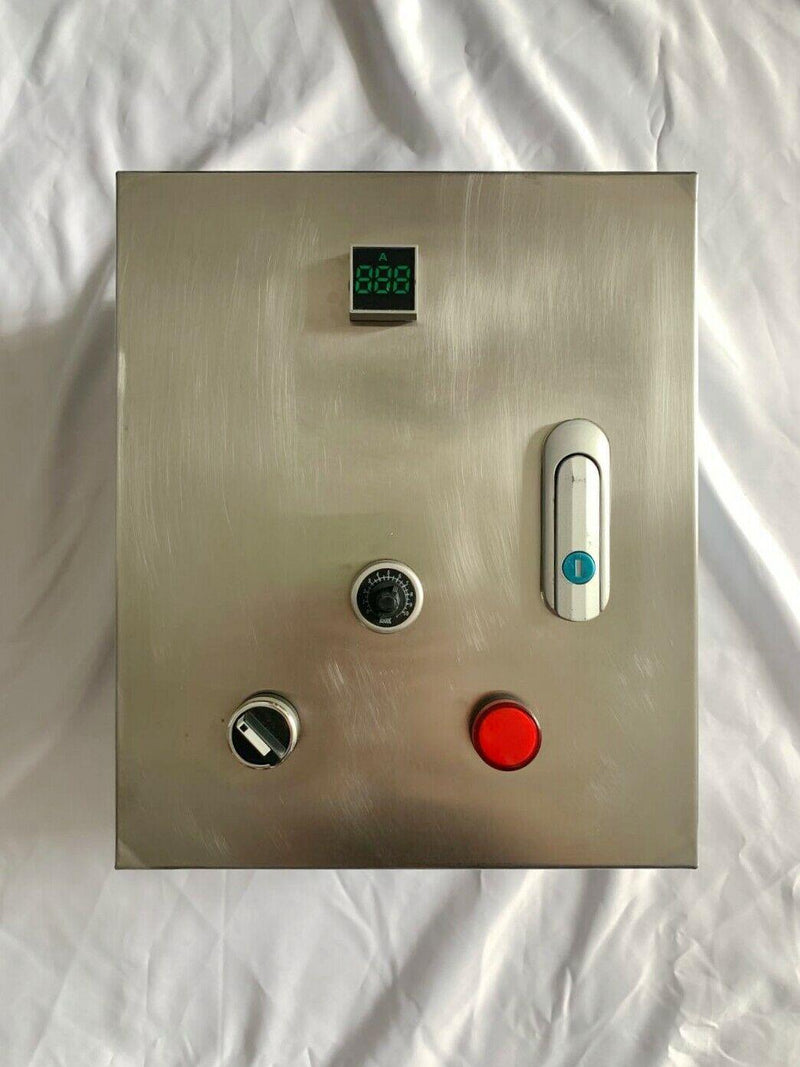

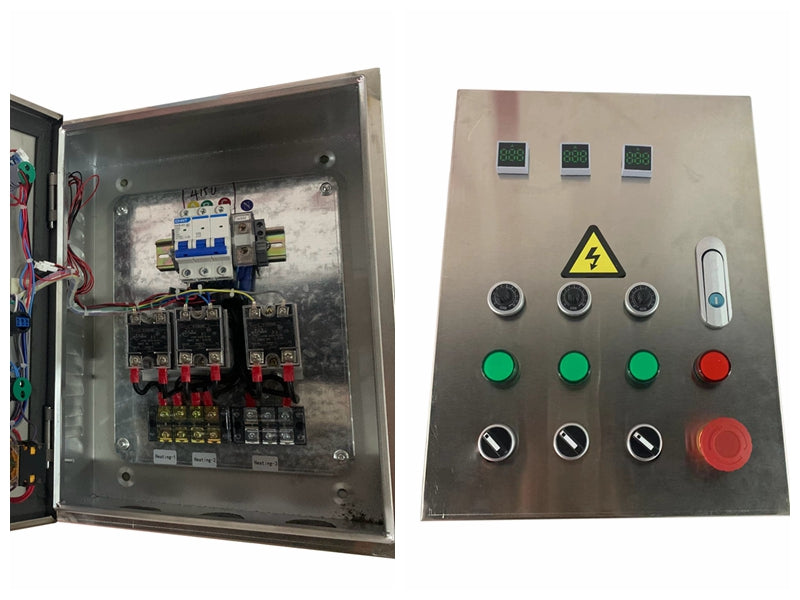

Each element wired to a 80A SSR and controlled by a potentiometer with a switch to turn off/on the element, the amperage meter is used to read the total amps of the elements.
